ΚΑΤΑΓΡΑΦΙΚΟ 4CH. DS-Hiwatch -HWN-2104H - 303613840

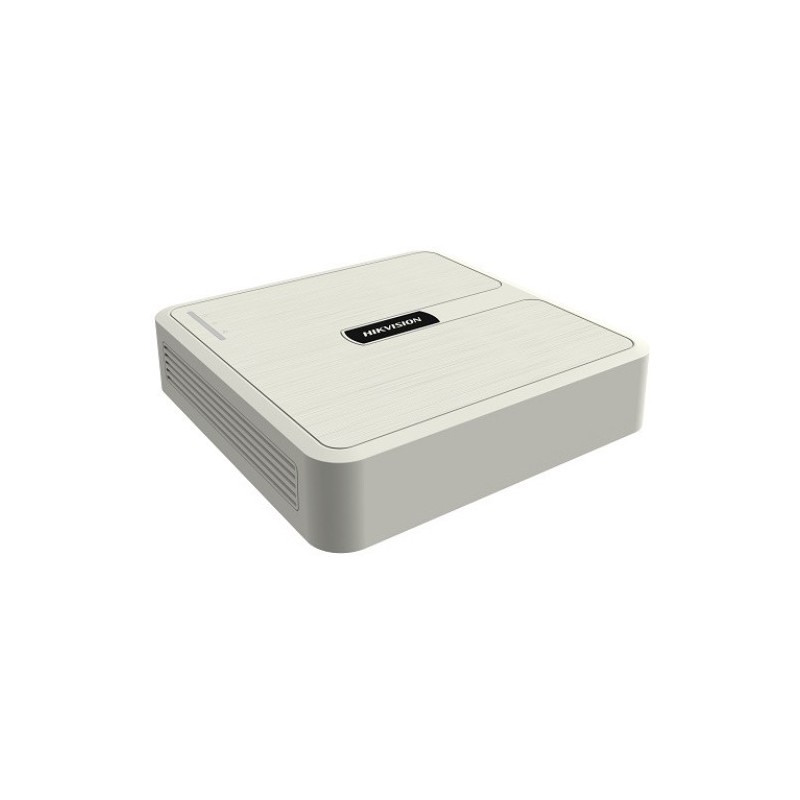

Hikvision HiWatch HWN-2100 Series Network Video Recorder
H.265+/H.265/H.264+/H.264 video compression,Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth,Up to 4-ch network camera inputs,Up to 4-ch 1080p decoding capability
HWN-2104H
ΚΑΤΑΓΡΑΦΙΚΟ 4CH. DS-Hiwatch -HWN-2104H - 303613840
Hikvision HiWatch HWN-2100 Series Network Video Recorder
H.265+/H.265/H.264+/H.264 video compression,Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth,Up to 4-ch network camera inputs,Up to 4-ch 1080p decoding capability
Product properties
| Video/Audio input | |
| IP video input | 4-ch Up to 4 MP resolution |
| Network | |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 60 Mbps |
| Remote connection | 16 |
| Video/Audio output | |
| Recording resolution | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
| Decoding | |
| Live view/Playback resolution | 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 4-ch@1080p (25 fps), 2-ch@4 MP (25 fps) |
| Network management | |
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Hard Disk | |
| SATA | 1 SATA interface |
| Hard Disk Capacity | Up to 6TB capacity for each disk |
| External interface | |
| Network interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Power | ≤ 18W |
| Consumption(without hard disk) | ≤ 10 W |
| Working temperature | -10 to +55º C (+14 to +131º F) |
| Working humidity | 10 % to 90 % |
| Chassis | 1U chassis |
| Dimensions(W × D × H) | 200 × 205 × 48 mm (7.9" × 8.1" × 1.9") |
| Weight | ≤ 1 kg (2.2 lb) |
HWN-2104H
